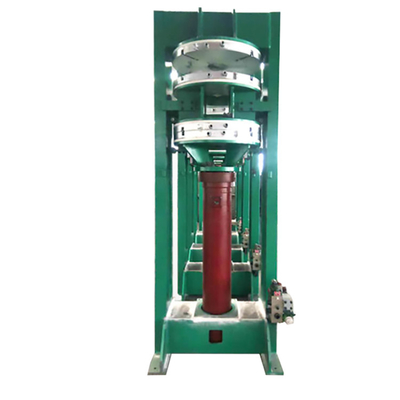

Use high performance capsule tire factory motorcycle vulcanizing machine for sale

1 Set
MOQ
Use high performance capsule tire factory motorcycle vulcanizing machine for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Vacuum Vulcanizing Press
Voltage: 380V
Dimension(L*W*H): 800mm*1800mm
Weight: 250kg
Warranty: 5 Years
Key Selling Points: Easy To Operate
Showroom Location: None
Applicable Industries: Manufacturing Plant, Retail, Energy & Mining
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Turkey
Certification: ISO
Product Name: Tire Capsule Vulcanizing Machine
Clamping Force: 70T
Specification: 8-19 Inches
Diameter Of Hot Plate: 800mm
Heating Method Of Hot Plate: Steam Heating
Cylinder Stroke: 1800mm
Cylinder Diameter: 220mm
Working Layers: 2 Layers
Structure: Vertical Frame Structure
Working Pressure Of Hydraulic System: 17-19mpa (up To 31.5mpa)
Basic Infomation
Certification: ISO
Payment & Shipping Terms
Product Description
Product Description

The main features of the capsule vulcanizer are high Film pressure and double heating; short vulcanization time and good quality. High production efficiency (one person can operate 8-10 sets), low labor intensity (general women can operate), low labor cost, high safety performance and high degree of automation.

Clamping force

70T

Specification

8-19 inches

diameter of hot plate

800mm

Heating method of hot plate

steam heating

Cylinder stroke

1800mm

Cylinder diameter

220

working layers

2 layers

Structure

vertical frame structure

Working pressure of hydraulic system

17-19mpa (up to 31.5mpa)

Power supply

380V

Hydraulic station capacity

one tow of five to ten vulcanizing machines
