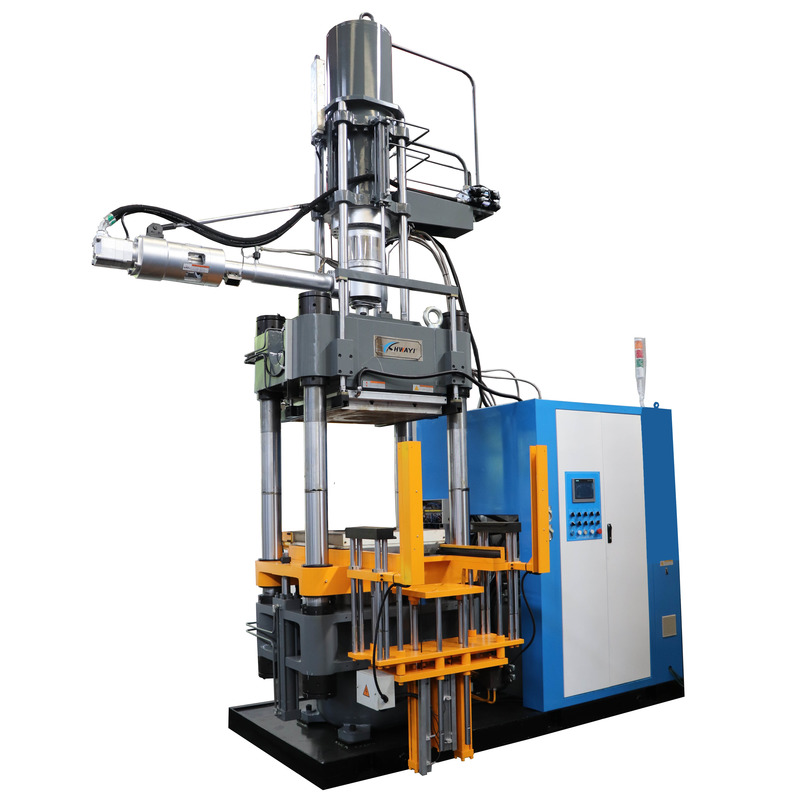

HYZ-400E Rubber Injection Molding Machine is suitable for Solid Silicone Rubber material product making, such as: Tire bladder,Sealing Ring, Insulator, Bushing, Cable Joints ,etc.
This type of machine includes stuff, plasticizing, injection, vulcanization and clamping system. It not only improves the automation level and the production efficiency, but also improves the quality of rubber product. It is the ideal equipment of molding high quality rubber products.
why choose first in first out rubber injection molding machine
Adopting a first-in, first-out device to prevent dead material from remaining, and the rubber material can be easily replaced without waste.The temperature of the injection pipe oil is controlled by a constant temperature system to prevent vulcanization of dead glue.The use of low-speed high-torque hydraulic motors can ensure high hardness of the rubber material quickly.
Adopt linear vertical injection system to ensure the injection pressure and the hardness of injected rubber can reach 90 degrees.The device is equipped with a fully enclosed safety baffle and grating, alarm prompts and a high-precision measuring scale device, to clearly and safely grasp the status of the machine.Proportional oil circuit system, low noise and automatic pressure adjustment function, accurate and stable.Short nozzle designs, no spillage, no plastic leakage, can shorten the plasticization time.Special cold runner device can be customized to save rubber material.
Advantages between our machine and Taiwan Machine
Taiwan machine with complicated structure, which mean it is difficult for maintaining & repairing; our machine with simple structure, easy for maintaining and repairing.Taiwan machine production speed is very slow, and much more energy consumption; our machine production can be 40% more faster than the Taiwan machines, and with less energy consumption;Our machine can do "all-in-all-out", which is our own patent, and our machine can handle with the hard rubber as more that 85 degree hardness; Taiwan no "all-in-all-out"injection machine till the moment.
We can offer free training at our factory when your staff come for trainning. Even we can offer free accomodation for your staff when training at our factory.Price: our price is somehow lower level than that in Taiwan.
Main Features of the Medical Rubber Stopper Injection Molding Machine:
Accurate and balanced oil path, barrel and plunger with special adjustment effect, good neutrality, low wear, not easy to leak glue, stable measurement, high precision, good balance and stability during injection
It is more convenient than the traditional advanced first-in-first-out inspection. After the injection part is upgraded, there is enough operation space for maintenance.Prevent mold damage protection function (company patent)
FIFO four-cylinder balanced injection structure
Specifications | HYZ-400E |
Injection Volume(cm3) | 4000 |
Clamping Force(kN) | 4000 |
Platen Size(mm)(Width*Length) | 800*800 |
Dimension btwn Tiebar(mm) | 900 |
Space of Platens(mm) | 1000 |
Max. Clamping Stroke(mm) | 600 |
Min. Mold Thickness(mm) | 250 |
Screw diameter (mm) | Φ55 |
Piston diameter (mm) | 115 |
Heating Power(KW) | 15 |
Total Power(KW) | 40 |
Dimensions(m)(L*W*H) | 3.8×2.0×4.5 |
Reference Weight(Ton) | 13 |
